Low temperature · Microminiature

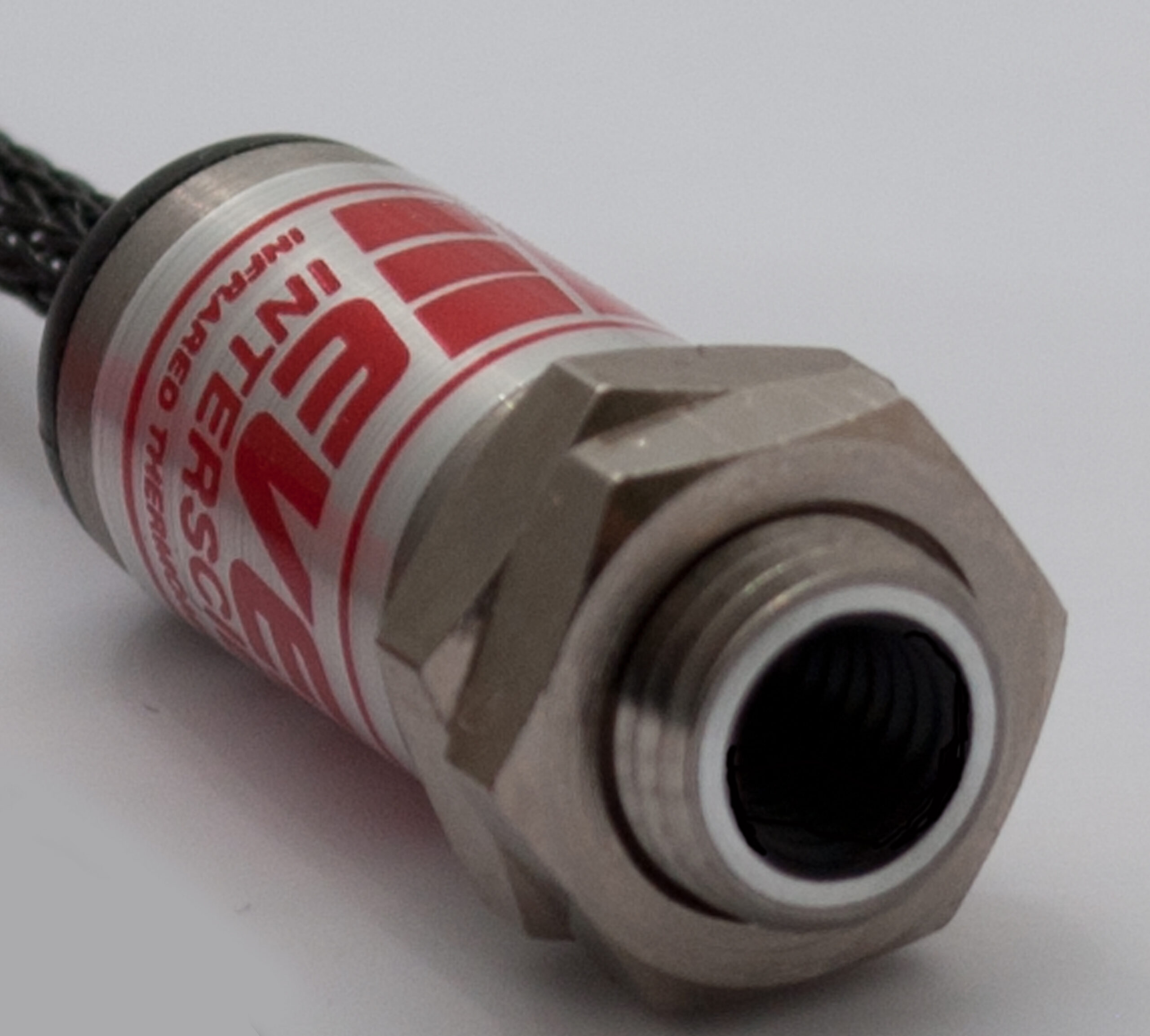

Model 3000MD
A one-piece, non-contact temperature sensor designed for fixed installation and integration into measurement and control systems.
Product Specifications
Model 3000MD technical details
The following values are taken from the supplied product specification sheet.
Temperature measurement
- Scale range
- −70°C to 400°C
- Accuracy
- ±0.5°C from 0°C to 50°C; ±1% elsewhere
- Response time
- <1.0 second
- Emissivity
- Adjustable from 0.1 to 1.10 in the field without tools
- Calibration
- Slope and offset adjustable in the field without tools
Optics and construction
- Field of view
- 10° cone (6:1) standard; auxiliary lenses available to 100:1
- Spectral pass band
- 5–14 µm
- Sighting
- Line of sight
- Operating distance
- 2 cm to 300 meters
- Dimensions and weight
- 9.0 mm diameter × 25 mm long; 14 grams
Interface and environment
- Analog outputs
- 0–5 V and 10 mV/°C formats
- Digital interface
- Asynchronous RS-232 at TTL level
- Power
- 5–40 V DC at 3 mA or 90–250 V AC, 50/60 Hz
- Operating environment
- −40°C to 100°C; up to 95% relative humidity, non-condensing
Documented uses
Application areas
- OEM integration
- Process monitoring
- Research instrumentation
This instrument is included from the documented Everest product catalog. Contact Lightsense to confirm current availability, specifications, and configuration options.
